4 Major Automotive Condenser Types: Structure, Applications and Benefits

Different vehicles require different condenser technologies. Understanding the differences between Serpentine, Tube-and-Fin, Parallel Flow, and Microchannel condensers can help distributors and buyers select the most suitable products for their target markets.

1. Parallel Flow Condenser

Made from a single aluminum tube and cooling fins, the tube is bent into an S-shaped path. Refrigerant flows through one continuous channel while airflow removes heat. It is durable, easy to repair, and cost-effective, but has lower cooling efficiency and heavier weight. Commonly used in older passenger cars, trucks, and commercial vehicles. Ideal for customers looking for affordable and durable products.

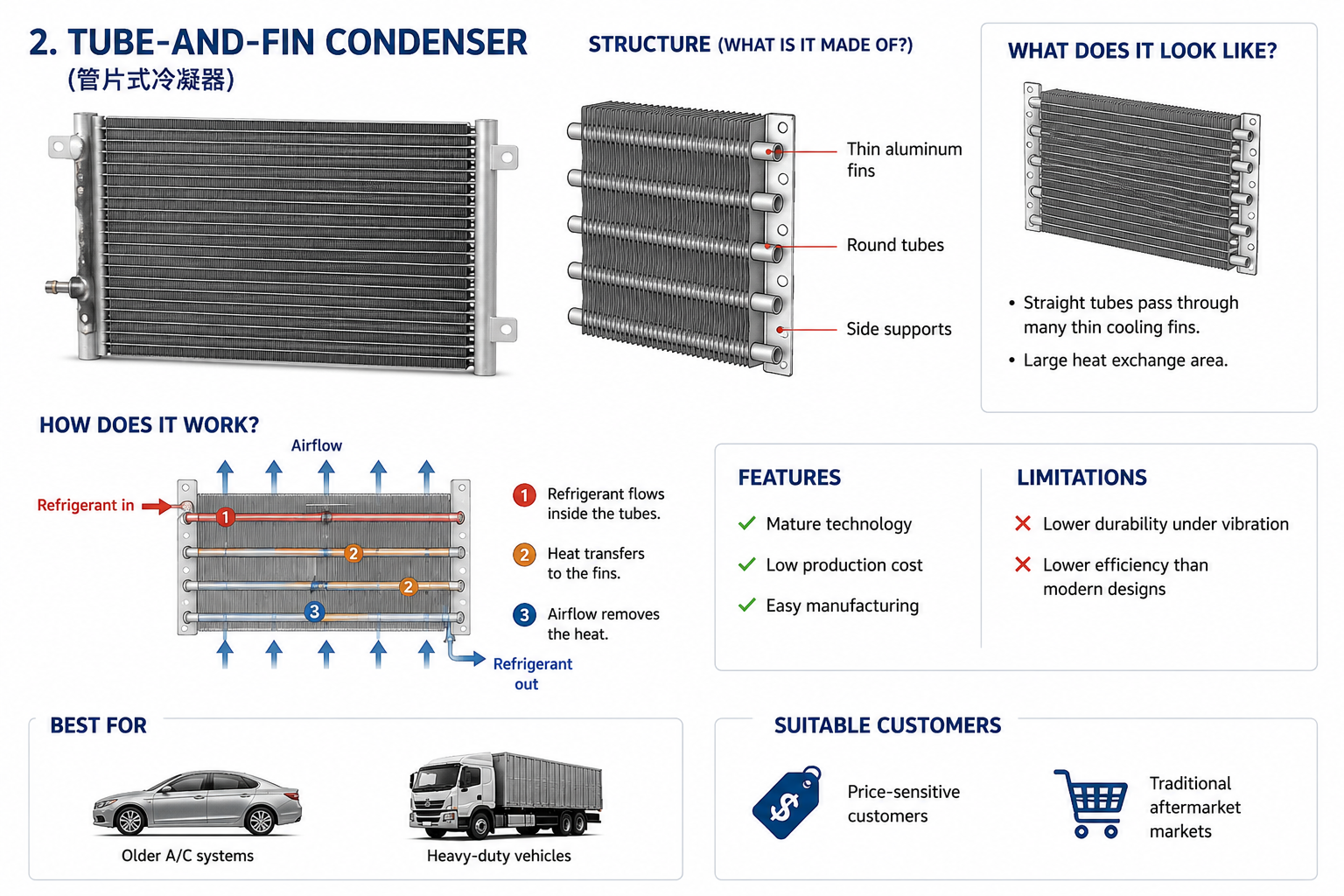

2. Tube-and-Fin Condenser

Made of round tubes and thin aluminum fins. Refrigerant flows inside straight tubes while heat transfers to the fins and is removed by airflow. It offers mature technology, simple manufacturing, and low production cost. However, it is less durable under vibration and less efficient than modern designs. Commonly used in older A/C systems and heavy-duty vehicles. Suitable for price-sensitive customers and traditional aftermarket markets.

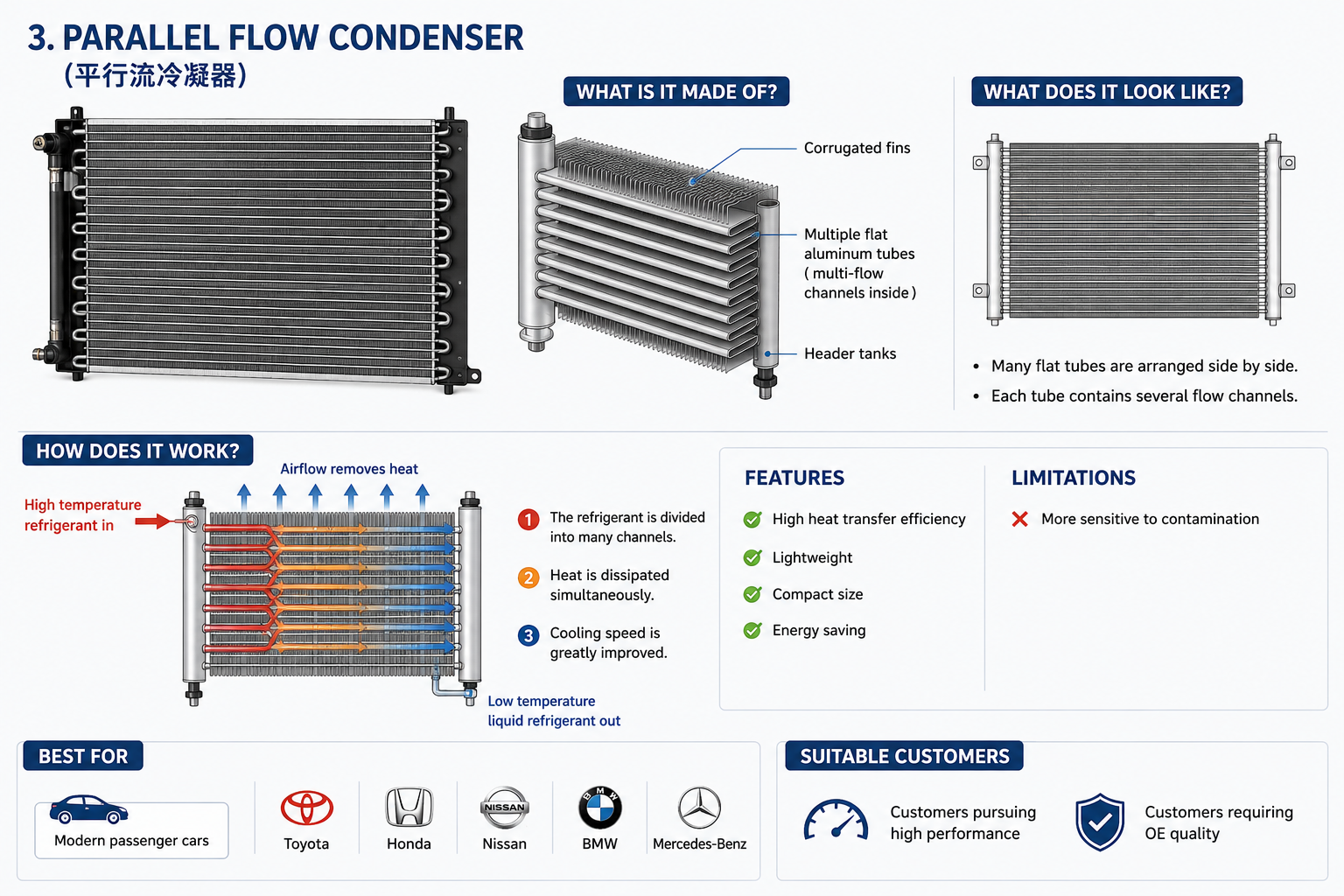

3. Parallel Flow Condenser

Made of multiple flat aluminum tubes, corrugated fins, and header tanks. Refrigerant is divided into many channels, allowing heat to dissipate simultaneously. It provides high cooling efficiency, lightweight construction, compact size, and energy savings. However, it is more sensitive to contamination. Widely used in modern passenger cars such as Toyota, Honda, Nissan, BMW, and Mercedes-Benz. Ideal for customers seeking high performance and OE-quality products.

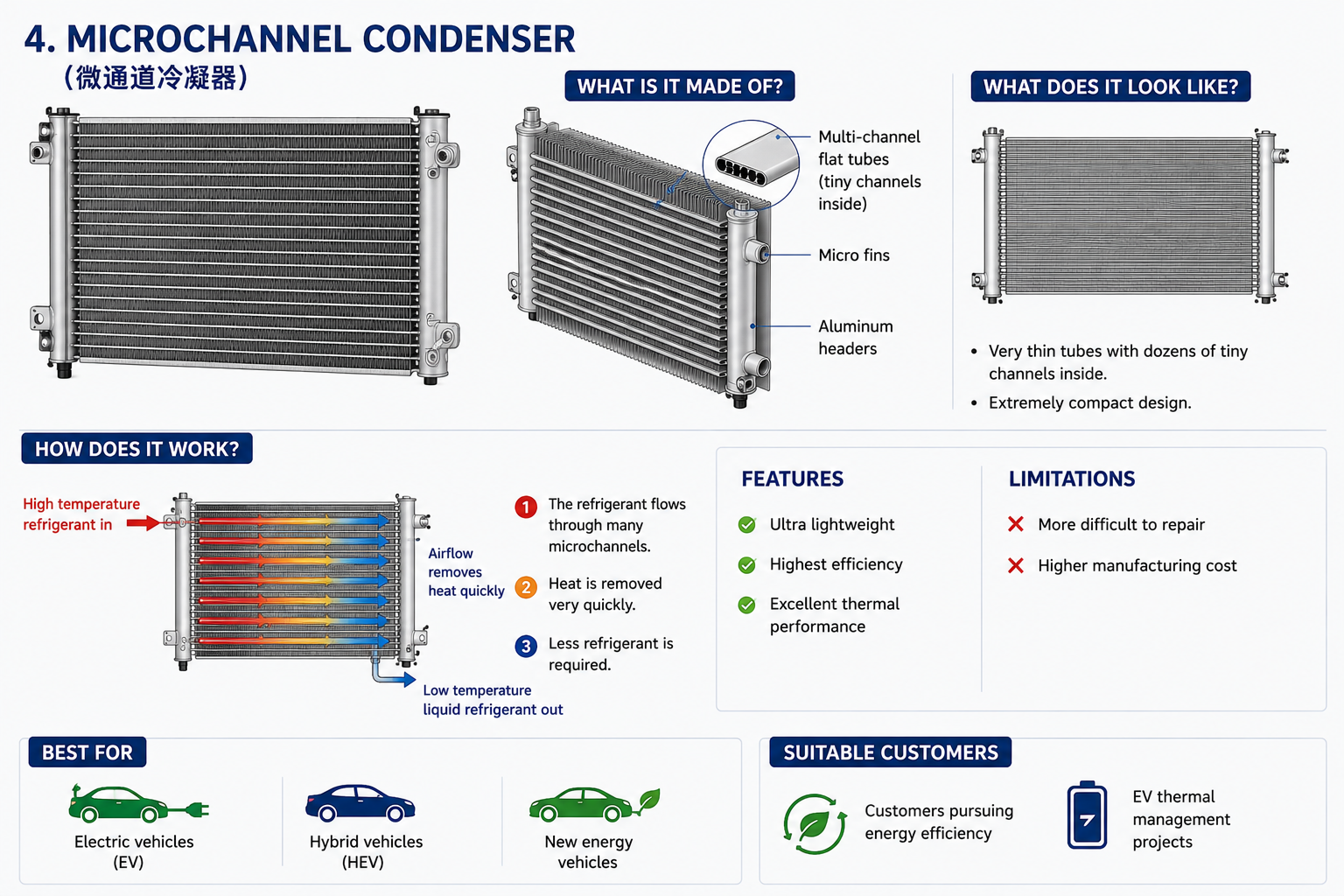

4. Microchannel Condenser

Built with multi-channel flat tubes, micro fins, and aluminum headers. Refrigerant flows through dozens of tiny channels, enabling extremely fast heat transfer with less refrigerant. It is ultra-lightweight and offers the highest thermal efficiency, but repair is more difficult and manufacturing costs are higher. Commonly used in electric vehicles, hybrid vehicles, and new energy vehicles. Best for customers focusing on energy efficiency and EV thermal management.
