The main function of an automotive radiator is to cool the engine and ensure stable vehicle operation while driving, making it an essential component of the vehicle. However, many car owners may not be very familiar with how radiators work. Next, let’s take a closer look at the working principles of air-cooled and water-cooled radiators.

How Does an Automotive Radiator Work?

Automotive radiators are generally divided into two types: air-cooled and water-cooled.

As the name suggests, air cooling achieves heat dissipation through the flow of cold air. Air-cooled radiators usually have dense cooling fin structures on the outer shell. These fins help conduct heat and keep the engine temperature at a lower level.

Water-cooled radiators remove heat through the circulation of coolant. The water pump sends the coolant into the radiator, and then the airflow generated while driving, together with the operation of the cooling fan, helps lower the coolant temperature, achieving the cooling effect.

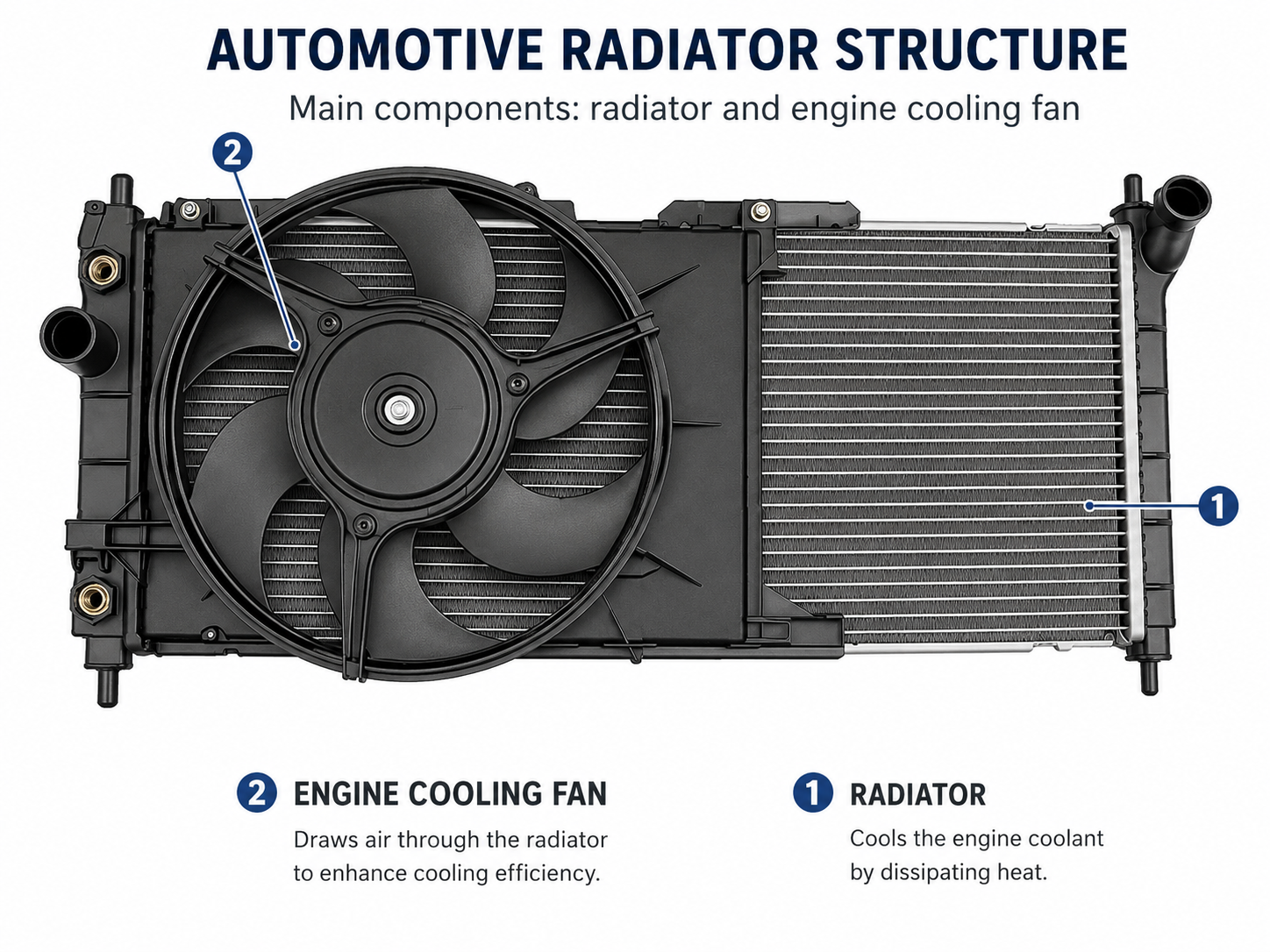

Automotive Radiator Internal Structure Diagram

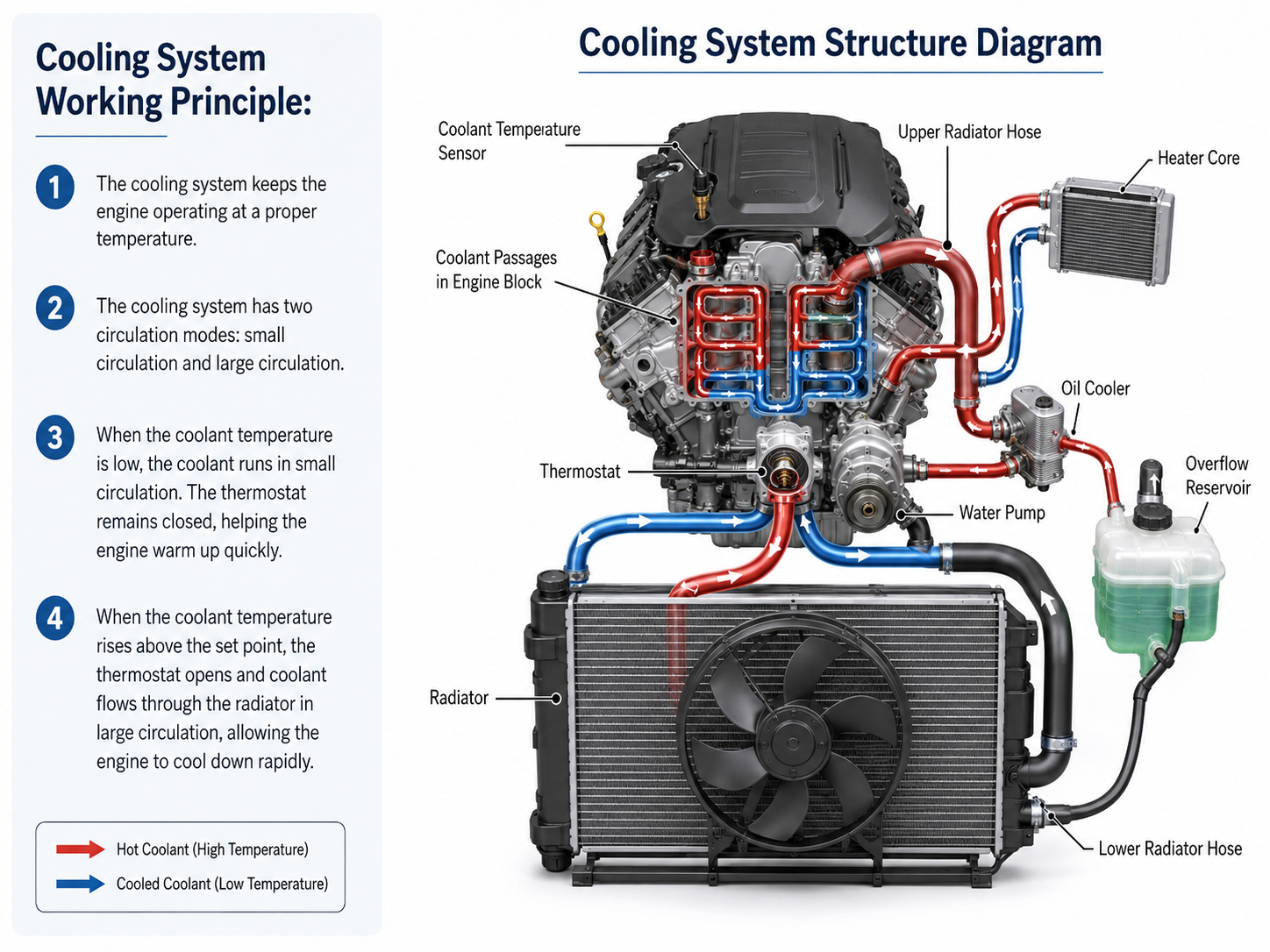

Today, most automotive radiators are water-cooled radiators. A water-cooled radiator system mainly consists of a water pump, radiator, cooling fan, thermostat, coolant reservoir (expansion tank), water jackets inside the engine block and cylinder head, as well as other auxiliary components.

The radiator is primarily responsible for cooling the coolant. After being cooled, the coolant flows back into the engine water passages to absorb heat from the engine. This continuous circulation process helps maintain the engine at a stable operating temperature and ensures efficient vehicle performance.

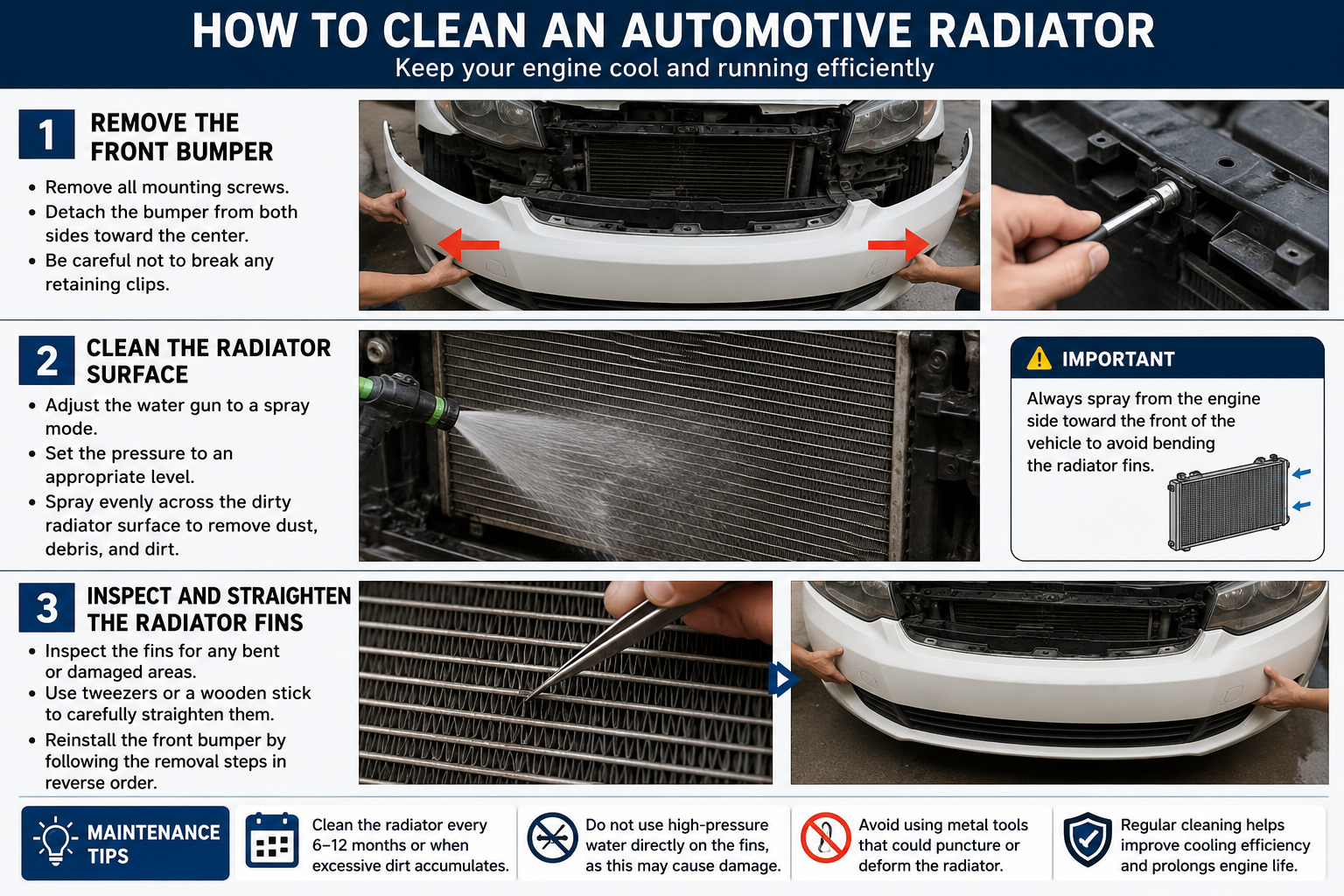

How to Clean an Automotive Radiator

Step 1: Remove the Front Bumper

Since the radiator is usually located behind the front bumper, the bumper must be removed before cleaning. Make sure all mounting screws have been removed, then carefully detach the bumper from both sides toward the center. Avoid breaking any retaining clips during the process.

Step 2: Clean the Radiator Surface

After removing the bumper, the radiator will be fully exposed and easy to access. Adjust the water gun to a gentle spray mode and set the pressure to an appropriate level. Then, spray water evenly across the dirty radiator surface to remove dust, debris, and accumulated dirt.

Important: Always spray from the engine side toward the front of the vehicle to avoid bending the radiator fins.

Step 3: Inspect and Straighten the Radiator Fins

After cleaning, inspect the radiator fins for any bent or damaged areas. If necessary, use tweezers or a wooden stick to carefully straighten them.

Once the inspection is complete, reinstall the front bumper by following the removal steps in reverse order. The radiator cleaning process is then finished.

Maintenance Tips

• Clean the radiator every 6–12 months or whenever excessive dirt accumulates.

• Do not use high-pressure water directly on the fins, as this may cause damage.

• Avoid using metal tools that could puncture or deform the radiator.

• Regular cleaning helps improve cooling efficiency and prolongs engine life.
