The condenser and evaporator are two essential components of an automotive air conditioning system. Although both are heat exchangers, they have completely different functions, installation locations, and structural designs. Working together, they complete the refrigeration cycle and provide a comfortable cabin temperature.

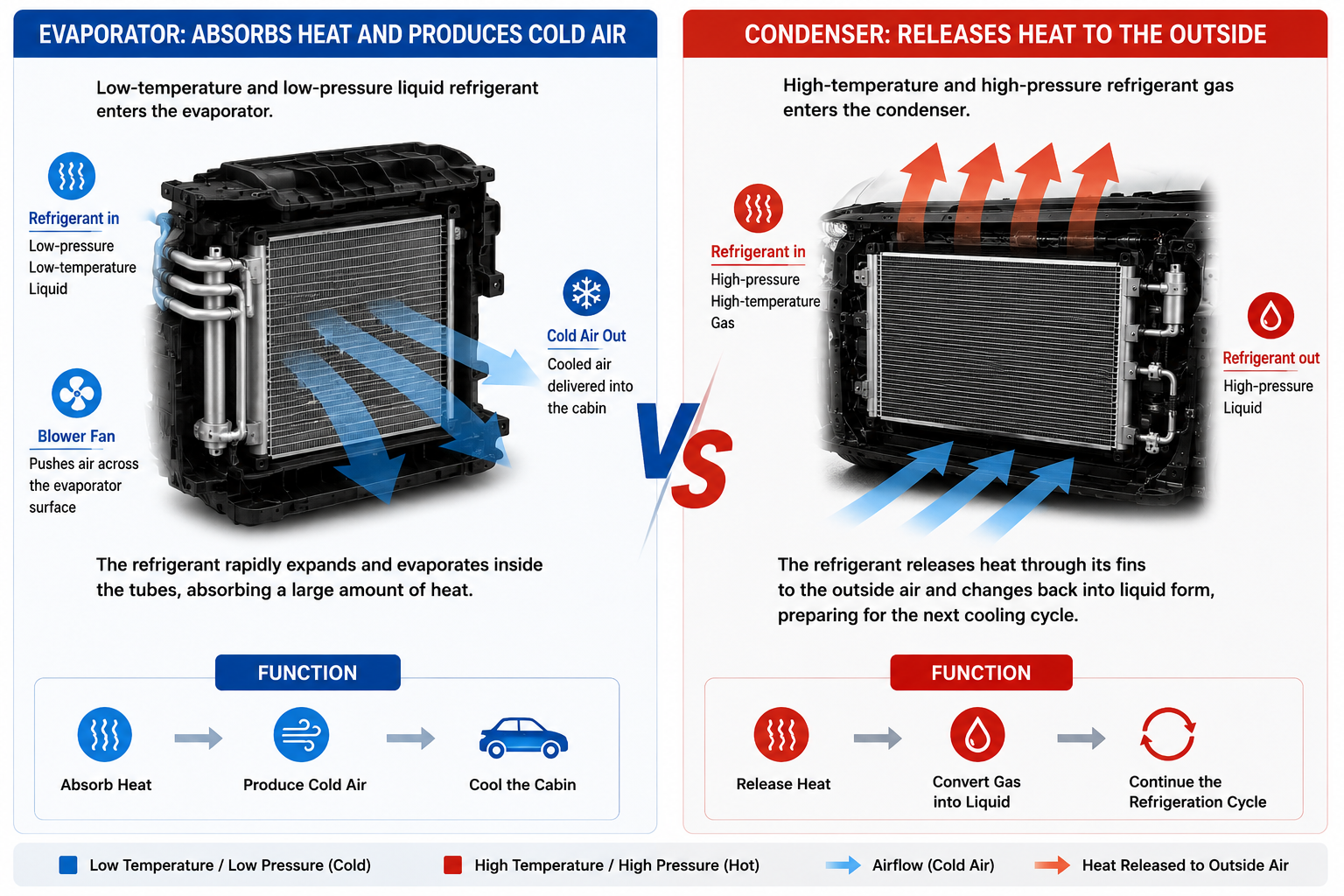

01. Opposite Working Principles

Evaporator: Absorbs Heat and Produces Cold Air

The evaporator's primary function is to absorb heat from inside the cabin.

When air conditioning is activated, low-temperature and low-pressure liquid refrigerant enters the evaporator. The refrigerant rapidly expands and evaporates inside the tubes, absorbing a large amount of heat.

At the same time, the blower fan pushes air across the evaporator surface, cooling the air before it is delivered into the cabin.

Function:

Absorb heat → Produce cold air → Cool the cabin

Condenser: Releases Heat to the Outside

The condenser works in the opposite way.

High-temperature and high-pressure refrigerant gas enters the condenser and releases heat through its fins to the outside air. The refrigerant then changes back into liquid form, preparing for the next cooling cycle.

Function:

Release heat → Convert gas into liquid → Continue the refrigeration cycle

02. Different Installation Locations

Condenser Location

The condenser is usually installed at the front of the engine compartment, directly in front of the radiator.

This position allows it to benefit from both vehicle airflow and cooling fans for efficient heat dissipation.

Evaporator Location

The evaporator is installed inside the dashboard and connected to the cabin air ducts.

Its compact design allows rapid temperature adjustment without occupying passenger space.

Maintenance Tip

Because of their locations, each component has different maintenance concerns:

Condenser

• Easily blocked by dust, insects, leaves, and road debris.

• Vulnerable to stone impacts.

Evaporator

• Moist environments can promote mold and bacteria growth.

• May cause unpleasant odors over time.

Regular cleaning can significantly improve A/C performance.

03. Different Structures

Condenser Structure

The condenser is typically composed of:

• Heat exchange tubes

• Cooling fins

• Header tanks

• Auxiliary cooling fans (on some vehicles)

It is generally larger because it requires a wide heat dissipation area to fully condense refrigerant gas into liquid.

Evaporator Structure

The evaporator is typically composed of:

• Heat exchange tubes

• Aluminum fins

• Compact housing

Its compact design reduces weight and allows installation in limited spaces.
